M19 waterproof Connector Self Locking Industrial Female Connector 3+9 PinSignal power integrated

Name: M19 waterproof Connector Self Locking Industrial Female Connector 39 PinSignal power integrated
Brand: SHANGWEN
Price: 2.20 USD

China M19 waterproof Connector Self Locking Industrial Female Connector 3+9 PinSignal power integrated wholesale

Place of Origin : Guangdong, China

Brand Name : SHANGWEN

Model Number : SW19-12KSFT

Packaging Details : 10pcs/sample bag
25pcs/Blister box(23cm x 23cm)
500pcs/carton (51cm x 26cm x 34cm)

MOQ : 2 pieces

Price : $2.20/pieces 2-99 pieces

Name : Waterproof M19 Connector

Type : SW19 Self-locking series

Gender : Female

Industrial electronics : accessories

Features : Push-pull Self-locking Connection

Application : Industrial

Multiple Cores : 2,3,4,5,6,9,3+9 pin support

Contact Now

Outdoor Quick Simple Self Locking System 3 Core 9 Pin Industrial Female Connector

Model: SW19-12KSFT (3+9 pin female plug)

☑Small size of product

☑ Contact pin: Screw cable,soldering cup and crimp available

☑ Assembly: wire to wire type(no cable),wire to wire by overmolding, wire to board

☑ Black,blue,white and yellow color supported

☑ Different cable length could be customized
☑Multiple cores -2,3,4,5,6,9,3+9 pin support multiple application scenarios

☑Quick, simple self locking system
☑Connect reliably

☑ Advanced structure: Self-locking

Products Description

SW19 Self-locking series-3+9 Pin connector

1. Electrical parameters

Contacts NO.	3+9 pin
Rated current	5A
Rated voltage	60V AC
Withstand voltage	125V
Insulation resistance	≥100mΩ
Contact resistance	≤10mΩ

2. Mechanical parameters

Service life	＞1000 times
Power line	Φ4.5mm-Φ11mm
Cable size	0.3mm²-2.5mm²(22AWG-12AWG)
Type of terminals	Screw terminal and soldering terminal available

3. Material and environmental parameters

Shell&insulated parts	High performance engineering plastics
Contacts	Copper alloy
Contact diameter	Φ1.0mm
Protection degree	IP67
Flame-retardant grade	UL94-V0
Temperature range	-40℃~105℃

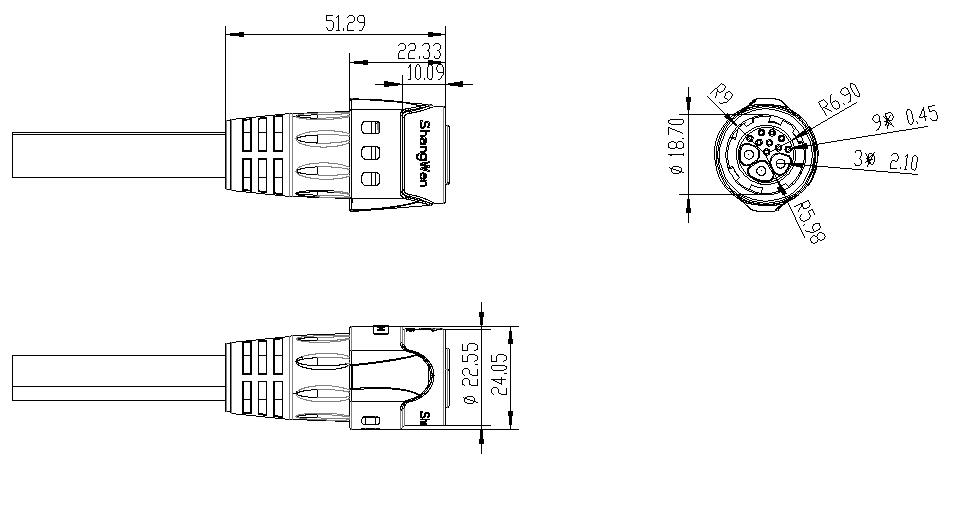

4. Size reference (unit /mm)

M19 waterproof Connector Self Locking Industrial Female Connector 3+9 PinSignal power integrated

5. Operating reference

Application area

Company Information

Patent & Certification

Exhibition activities

Packaging reference

Payment and logistics

FAQ

1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
