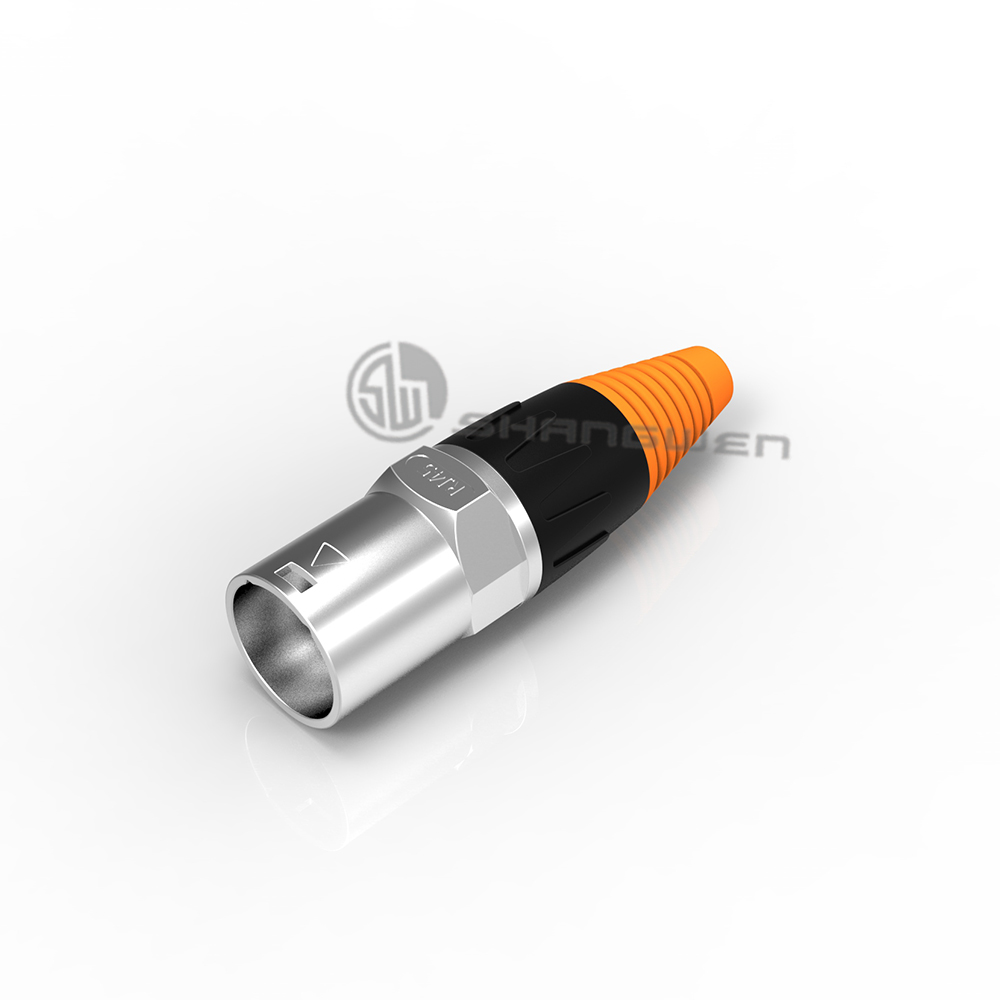

Shenzhen Outdoor Use Signal Connectors Rj45 Water Proof Male Female Connector Plug
Model:SW8MC-B-2(outdoor use)
☑This RJ45 system is suitable for very harsh environments
☑This cable connection kit works with most RJ-45 connectors
☑Rugged die-cast housing and unique wire rack lock
☑In commercial applications, protecting Ethernet connections, this design protects against the elements of RJ45 standard
components
☑The design of the inner O-ring enables the waterproof rating to reach IP65
Our Services:
To Be Your The Best Connection Expert
1)Low cost but good quality in ip65 waterproof in locked condition with ISO9001 management under efficient service
2) Provide free samples
3) Effective communication and rapid response
4) Early design-in capability,OEM, ODM are available
5) Globalization, localization of operation and management
6) long quality assurance.
| Service life | ＞1000 mating cycles |
| Insertion force | ≤20 N |
| Wiring | 5-7mm |
| Locking device | latch lock |
2. Material and environmental parameters
| Boot | Polyamide |
| Shell | Zinc diecast |
| Shell plating | Pearl Cr |
| Temperature range | -30℃to +80℃ |
3. Size reference (unit /mm)
4. Internal structure reference
5. Installation instructions with RJ45 socket
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.
4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
